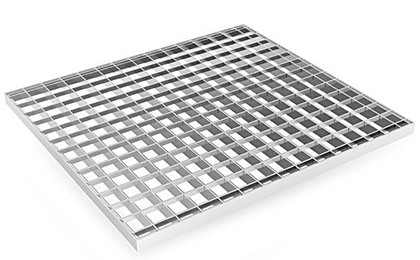

steel grating

Steel grating is made by the world first-class equipment,which can arrange the bearing bar and cross bar in longitude and latitude order to certain distance.cross bar is pressed into the bearing bar by high tension resistance weldingring which is controlled by computer.

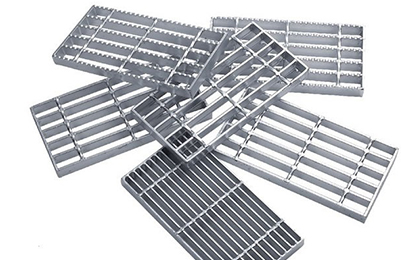

1.Raw material of bearing bars: Carbon steel or stainless steel with plain type, I type or serrated type.

2.Raw material of cross bars: Carbon steel or stainless steel in round bars, square bars, twisted square bars or hexagon bars.

3.Raw material of end bars: Same material as bearing bars.

Grating standard

Material standard

HDG standard

Handrail standard

YB/T4001-2007

GB704-88

GB/T13912-92

4053.3-93

ANSI/NAAMM

ASTM(A36)

ASTM(A123)


BS4592-1995

BS4360(43A)

BS729

BS6399/BS6180

AS1657-1992

AS3679

AS1650

1650-1985

Bearing bar height

(mm)

Bearing bar thickness

(mm)

Bearing bar pitch

(mm)

Cross bar pitch

(mm)

65

5

20/30/40

50/100

60

5

20/30/40

50/100

55

5

20/30/40

50/100

50

3/5

20/30/40

50/100

45

5

20/30/40

50/100

40

3/5

20/30/40

50/100

35

3/5

20/30/40

50/100

32

3/5

20/30/40

50/100

25

3/5

20/30/40

50/100

20

3/5

20/30/40

50/100

 Galvanized Steel Grating
